Claris i5HD Intraoral Camera

The All-New, All-Aluminum

Claris® i5HD Intraoral Camera

Claris® i5HD Intraoral Camera

25 Years of Intraoral Camera Evolution, Embodied Now

Since 1993, SOTA has helped build optic assemblies for the most well-known and trusted intraoral cameras in dental. With the production of our own proprietary cameras such as the Claris i310, one of the first USB intraoral cameras on the market, and the award-winning Claris i4D, we have developed the technology — from optics to ergonomics — to provide dental practitioners with the most advanced intraoral camera to date. Introducing the all-new Claris i5HD.

Powerful from the inside out.

Native HD Imaging Sensor

Unlike other “HD” cameras that merely resize images to high-definition resolution, our Claris i5HD Intraoral Camera is equipped with a native high-definition imaging sensor, reducing pixelation and unwanted artifacts that may obfuscate proper diagnosis. Be assured that your images will look crisp, clear, and vibrant on even the largest display formats.

Incisor Detail

Incisor Detail

Full Smile

Full Smile

Single Molar

Single Molar

Upper Molar

Upper Molar

Filing Detail

Filing Detail

Lower Arch

Lower Arch

It’s by far the best camera I’ve ever owned. The detail you can show your patients is amazingly clear.

— Dr. Scott Methven, Wasilla, AK

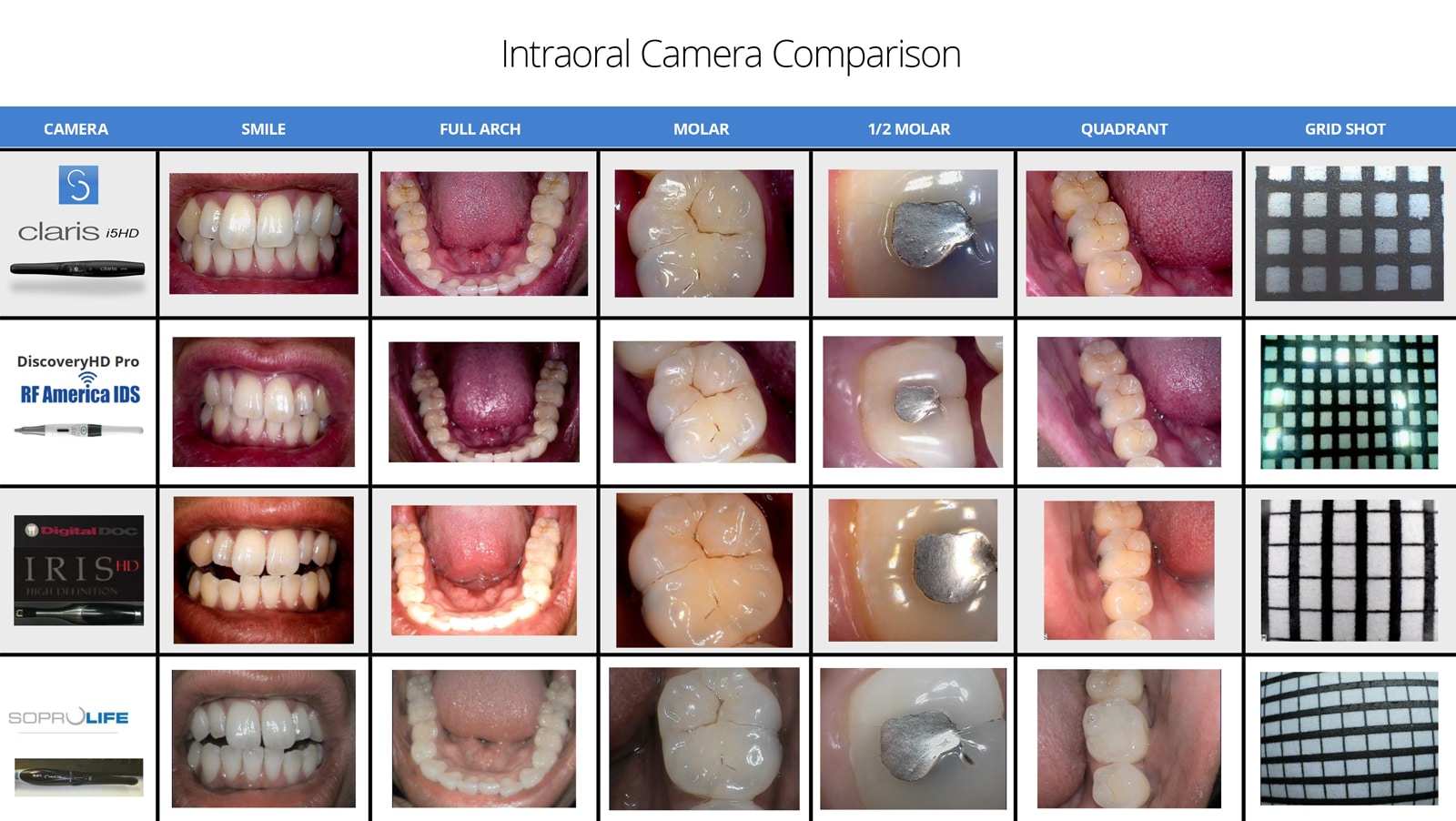

Intraoral Images, Straight and True

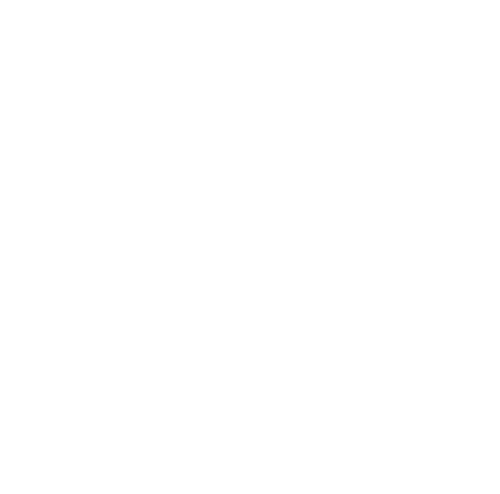

Other Brands

Other Brands

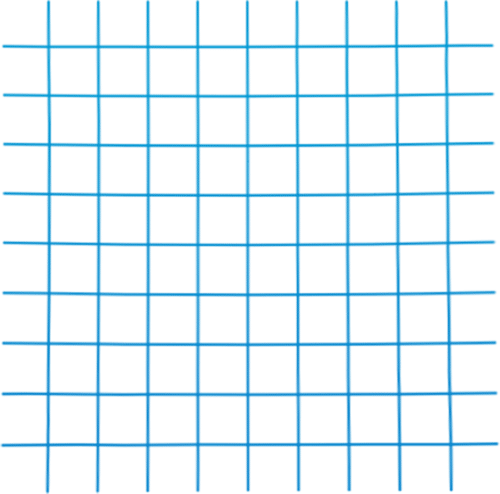

Claris i5HD

Claris i5HD

Lens quality and assembly is a crucial part of capturing images true-to-reality. Originally founded as an optics assembly manufacturer, SOTA can guarantee that our lens assembly is built to produce some of the least-distorted images in the industry. With a less than 5% distortion-rate, you can be confident that your images will communicate exactly what’s going on.

Pedal to the metal.

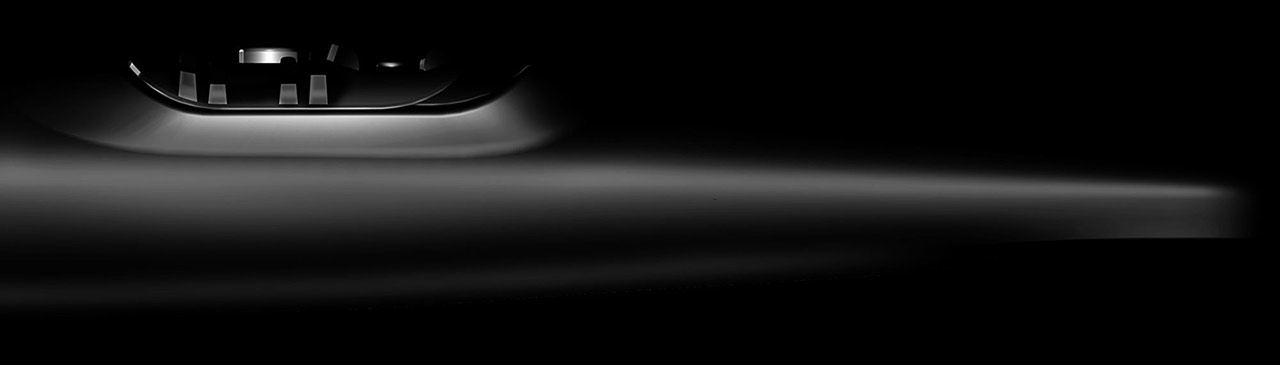

Claris i5HD

Space-grade, Anodized-Aluminum Body

We matched the superior optics of this camera with the most high-quality materials. With a space-grade, anodized, machined aluminum body—the same materials used in the most premium smartphones—the Claris i5HD is not only built for extreme durability and strength but for a lightweight feel in your hand as well. And, simply, because it looks amazing.

Aluminum
Light-weight

The extra-large slide-focus makes adjusting focus super easy and quick especially when handling the camera on-the-fly.

— Dr. Marvin Pantangco, San Diego, CA

Maximum control and comfort.

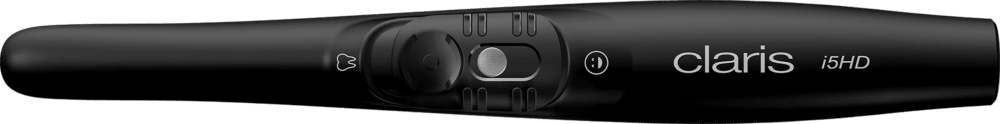

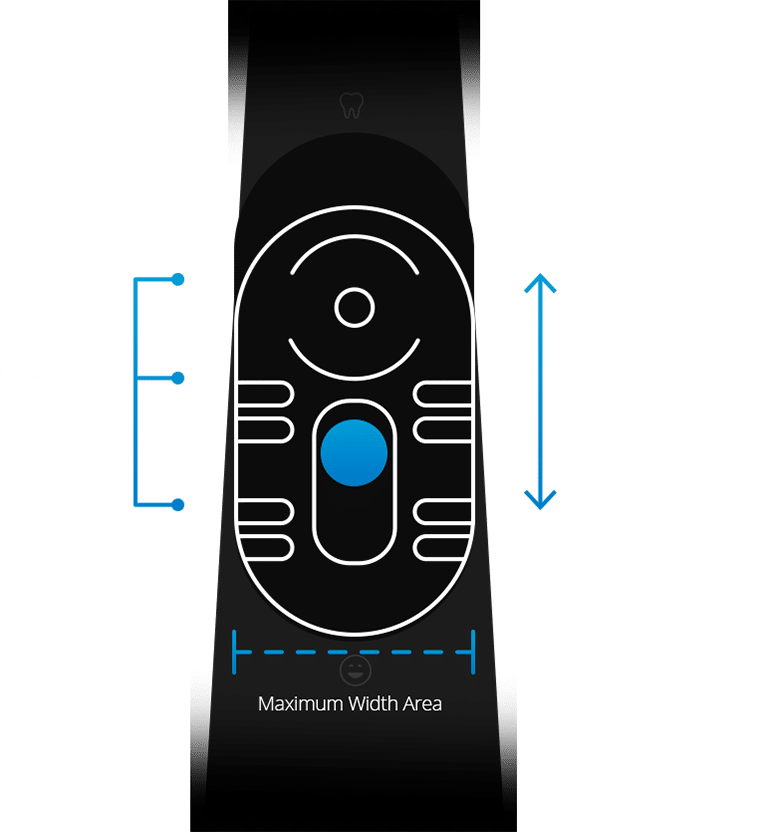

Ambidextrous Slide-Focus and Capture Button

Our slide-focus covers the maximum width and area on the camera body, giving you—single-handedly—the ability to easily adjust focus and capture images without having to re-adjust your hand placement or search for a tiny component. However you hold the camera, by the tip of your thumb or index finger, the large focus slider is designed not to impede your flow, letting you make decisions on the fly without even looking.

Slide-Focus

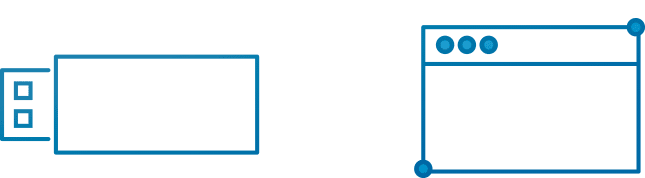

Turnkey Integration

Turnkey Integration

The Claris i5HD Intraoral Camera is one of the only turnkey cameras on the market, designed to work with almost any dental imaging software and major practice management programs including Apteryx, Dentrix, Dexis, Eaglesoft, EasyDental, to name a few. Simply plug the intraoral camera in and immediately begin taking crystal clear images seamlessly with your current systems.

Specs

Claris i5HD

MSRP – $3,195.00

CMOS Sensor – 1/3” Large Pixel With Native HD Resolution

MJPEG Output Resolution – 1280 X 720P and alternate 640 X 480 for backwards compatibility

Signal Output – USB 2.0 forward compatible with USB 3.X

Angle of View – 61 degrees

Focus Range – 2mm-200+mm (infinity)

Maximum Magnification – 640×480:20X -1280×720:50X

Lighting – 6 True White LEDs

Distortion – <5%

Driver Type, – UVC (USB Video Class)

Operating Systems – Windows 7/8/10 (32/64 bit) and macOS Sierra+
